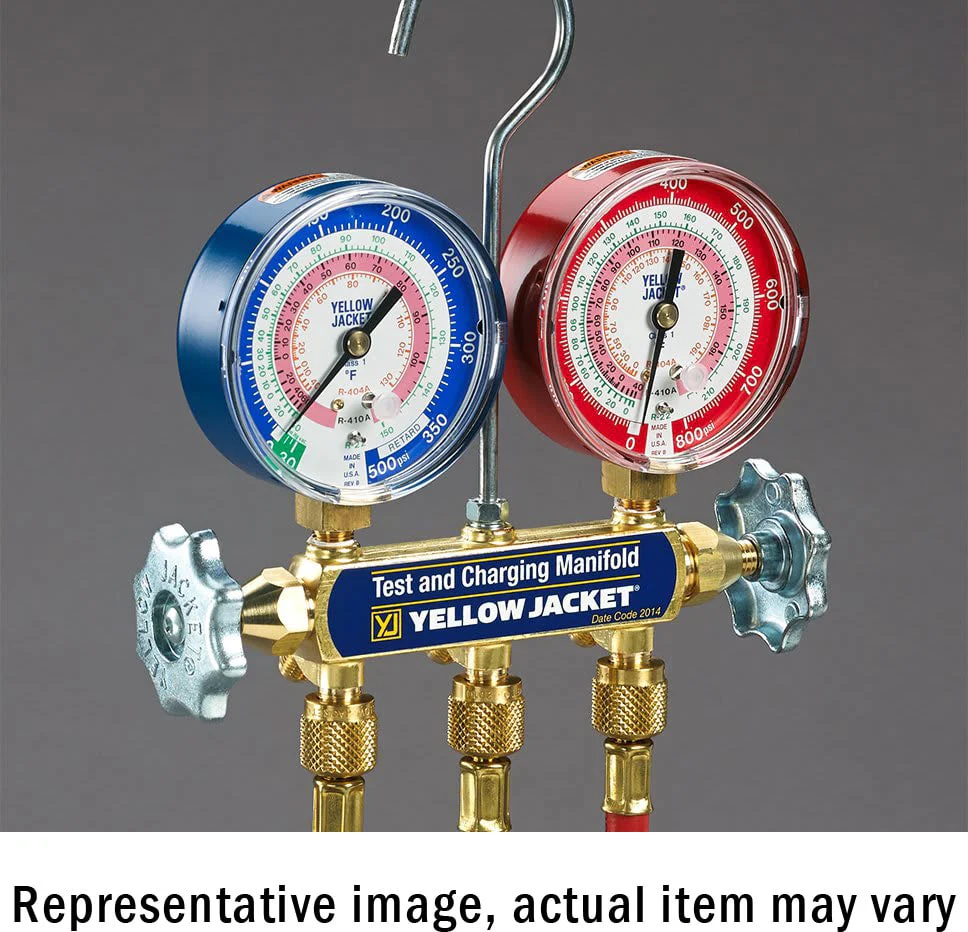

C 80MM R22/404a/134a MAN (41622)

C 80MM R22/404a/134a MAN (41622)

C 80MM R22/404a/134a MAN (41622)

C 80MM R22/404a/134a MAN

3 1/8" gauges
1% accuracy (Class 1)
Color-coded scales
Sliding double "O" ring pistons reduce wear
Long life nylon seats
Forged brass body for durability
Full porting maximizes capacity and flow
For models with hose assemblies - UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure. File# SA9737
Made in the USA
Manifold only
Scale: bar/psi
3 1/8" gauge
Sliding double "O" ring pistons reduce wear

This group of Yellow Jacket Series 41 manifolds feature easy to read 2.5-inch gauges, and highly durable, solid brass bodies. Full porting maximizes capacity and metal valve handles are full size for easy operation. Hose anchors are forged into the back of the body at 45°.

The following is a complete breakdown of every variation available. Manifolds are available with several styles of hose, and compatible with many different refrigerants.

Series 41 Manifolds
UPC#	Description - ºF and ºC	Scale	Refrigerant
41863	Manifold only with 5/16" -1/4" -5/16" anchor fittings and 1/4" service fittings - red/blue gauge	kPa/psi	R-32/410A
41652	Manifold only with 5/16", 1/4", 5/16" anchor and 1/4" service fittings	bar/psi
41659	Manifold only with 5/16" anchor fittings	bar/psi
42021	Manifold only	bar/psi
42024	With 60" PLUS II standard fittings	bar/psi
41862	Manifold only with 5/16" anchor and service fittings	kPa/psi
41865	41862 with 60" PLUS II 5/16" fittings	kPa/psi
41866	Manifold only	bar/kPa/psi	R-600
UPC#	Description - ºF - Red/Blue	Scale	Refrigerant
41842	Manifold only	psi	R-12/22/134a
42007	With 60" PLUS II standard fittings	psi
41846	With 72" PLUS II with couplers	psi
42001	Manifold only	psi	R-22/404A/410A
49271*	Certified 42001 manifold	psi
42004	With 60" PLUS II standard fittings	psi
42201	With 60" PLUS II compact ball valve fittings	psi
42005	Manifold only	psi	R-22/134a/404A
49272*	Certified 42005 manifold	psi
42006	With 60" PLUS II standard fittings	psi
42205	With 60" PLUS II compact ball valve fittings	psi
UPC#	Description - ºC - Red/Blue	Scale	Refrigerant
41622	Manifold only	bar/psi	R-22/134a/404A
41852	Manifold only	kPa/psi
41855	With 60" PLUS II standard fittings	kPa/psi
41632	Manifold only	bar/psi	R-12/134a/413A
42031	Manifold only	psi	R-22/404A/410A
42034	With 60" PLUS II hose, standard fittings	psi	R-22/404A/410A
41784	Manifold only with 5/16" fittings	MPa	R-32/410A

*Manifold comes standard with certified gauges.
